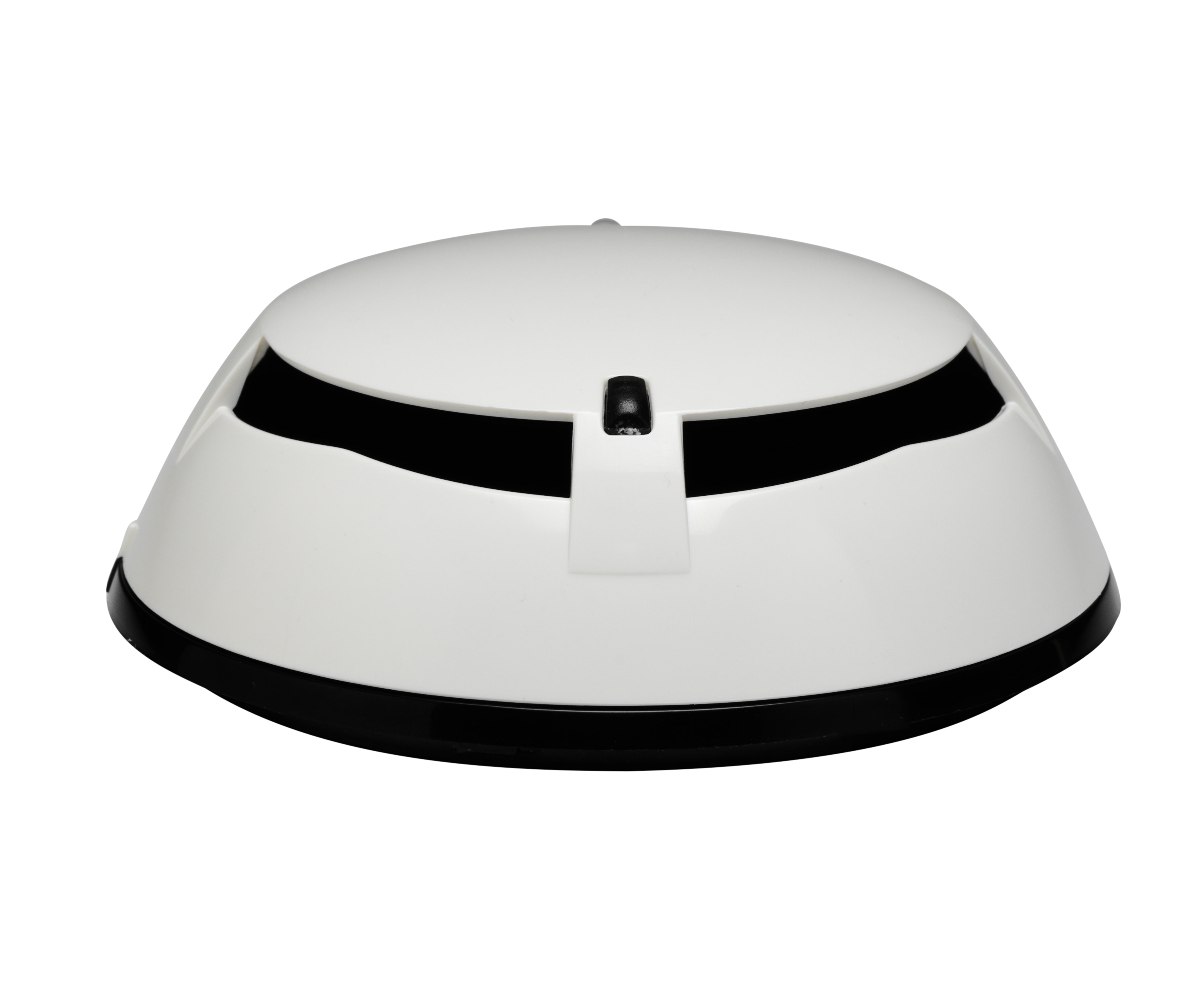

Intelligent Optical Smoke Detector without isolator

The Axis-OP analogue Optical Smoke Detector is a point detection device that continuously monitors the air in the protected area to provide the earliest warning of a fire condition.

The enhanced design of the smoke inlet and optical chamber guarantees a very high resistance to the entry of dust, ensuring a higher level of false alarm rejection without compromising sensing performance.

This detector is characterised by an aesthetically pleasing low profile and is specifically designed for Axis EN control panels.









Standards and Approvals

  • EN54-7:2002 +A1:2002 +A2:2006
  • Approved by BRE/LPCB and certified by the UAE Civil Defence

Features

  • Multiple fully approved sensitivity settings
  • Utilises Axis EN protocol with high noise rejection
  • Dual single-colour LEDs providing 360° cone of visibility
  • Dust Restrict Chamber (DRC) technology offering advanced immunity to airborne contaminants
  • Open style mounting base offers easy wiring and low pressure locking
  • Addressing using the Device Programming Tool

Specification

Loop Voltage(*) 18-40 Vdc
Average Standby Current 85 μA @ 24Vdc
Remote Output Max Current 20 mA
Max number of loop addresses 240
Operating Temperature Range -10°C / +55°C
Humidity (non condensing) Max 95% RH
Dimensions H x D 49 x 100 mm
IP Rating IP40 (IP42 with silicon base gasket)
Weight (Standard Base included) 130 g
Colour Custom white.  Closest RAL is RAL 9016

(*) Product operates down to 15 V, but without LED indication.

Order Codes and Options

Axis-OP Intelligent Optical Smoke Detector without isolator
Axis-MB Base
Axis-SAMB Slave Sounder Base
Axis-SVAMB Slave Sounder Beacon Base
Axis-SMB Intelligent Sounder Base
Axis-SVMB Slave Sounder Beacon Base
Axis-WP Silicon Base Gasket
